Hydrogen Fuel Cell Trainer

HFCT–001

Operational Hydrogen/electric trainer manufactured using original automotive components.

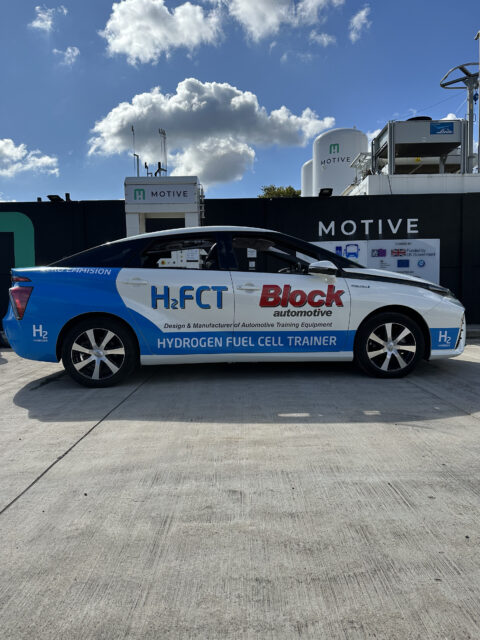

A blue and white car parked in front of a building.

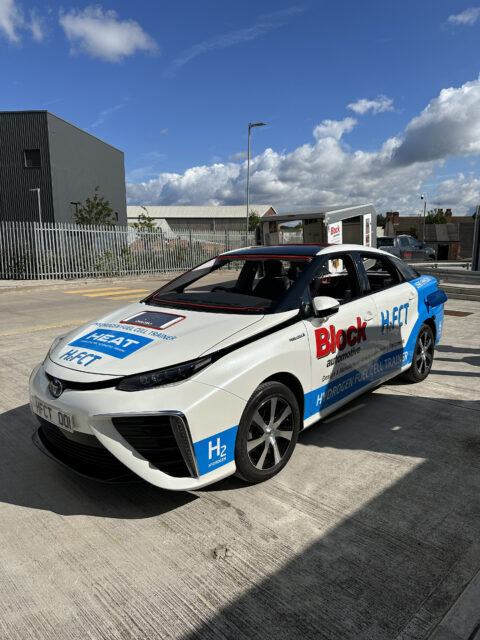

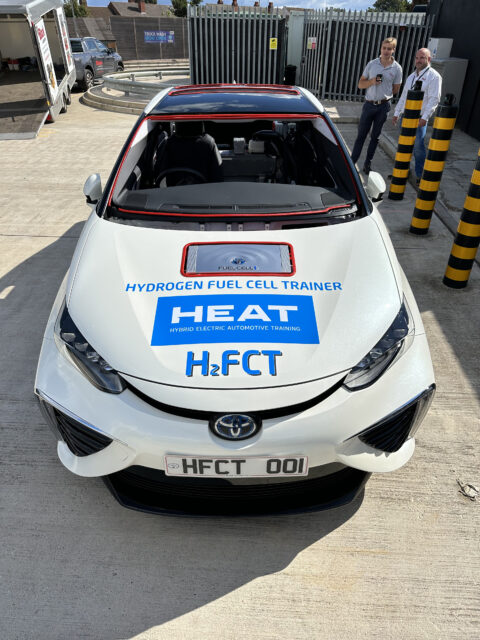

A white toyota prius is parked in a parking lot.

This product is UK Conformity Assessed

Product Specifications

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

  • Dimensions

    W x L x H: 1885mm x 4975mm x 1470mm

  • Weight

    1,900 Kg

  • Specification

    • Based upon Toyota Mirai 2017- 2020
    • Hydrogen/electric complete with Fuel cell, Cooling, H20 discharge port, Ignition, Start and diagnostic functions via the DLC3 connection.
    • HV front transaxle including. MG1 MG2 Power split planetary gear, motor speed reduction planetary gear. Fully operational CVT Transmission.

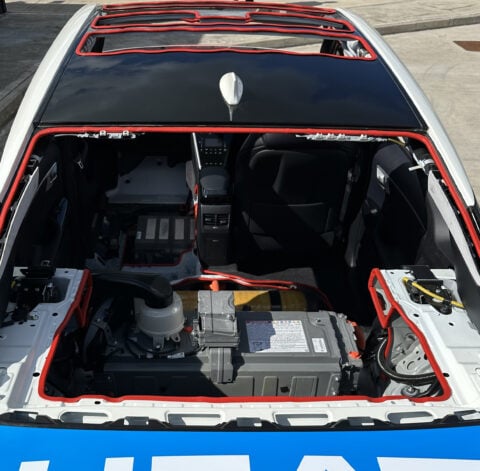

    • Toyota Mirai with the bodywork removed so that all parts, components are easily viewed.
    • To be complete with drive shaft, end hubs and wheels.
    • To be supplied with engine & fault insertion (under development).
    • Manufacturers Hydrogen leak detection.
    • Supplied with a comprehensive training manual.
    • Warranty 24 months from date of delivery.
      • Block Automotive design, engineer, fabricate and produce all their vocational training units at their bespoke facility here in Suffolk. We are extraordinarily proud to be part of the ‘MADE IN BRITAIN’ initiative, this brings together the British manufacturing community, united by the use of the registered collective mark.
      Made In Britain Logo

    • Tooling

      Included within the purchase price of the Hydrogen Trainer:

      A red tool kit with tools and a red case.

      1. Set of HV-rated PPE including fully insulated electrical safety gloves with cotton under liners.

      2. VDE/TUV/GS-approved insulated tools for working with FCV Systems.

      3. Cat III TUV/GS approved multi-tester rated 6-1000v

      Available for supply upon request.

      Please note: Images for illustration purposes only, products supplied may vary from image.
      Additional equipment recommended for use with HYDROGEN Trainer to be supplied by College.

      Two red and white poles with a warning sign.

      A) Plastic chains and safety posts to make obvious barriers around Hydrogen Trainer when working within FCV System.

      B) High Voltage danger sign/no admittance to be displayed.

      C) Insulated rescue pole to be present.

      Available for supply upon request.

      Please note: Images for illustration purposes only, products supplied may vary from image.
