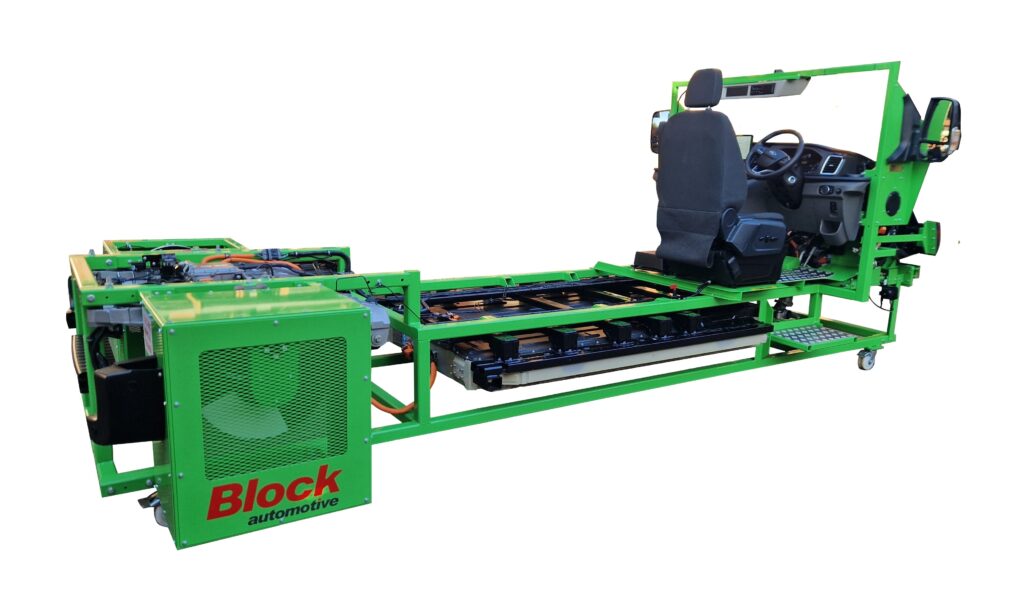

Commercial EV Trainer Ford Transit 425
C-EV-001
1. Manufactures charging point

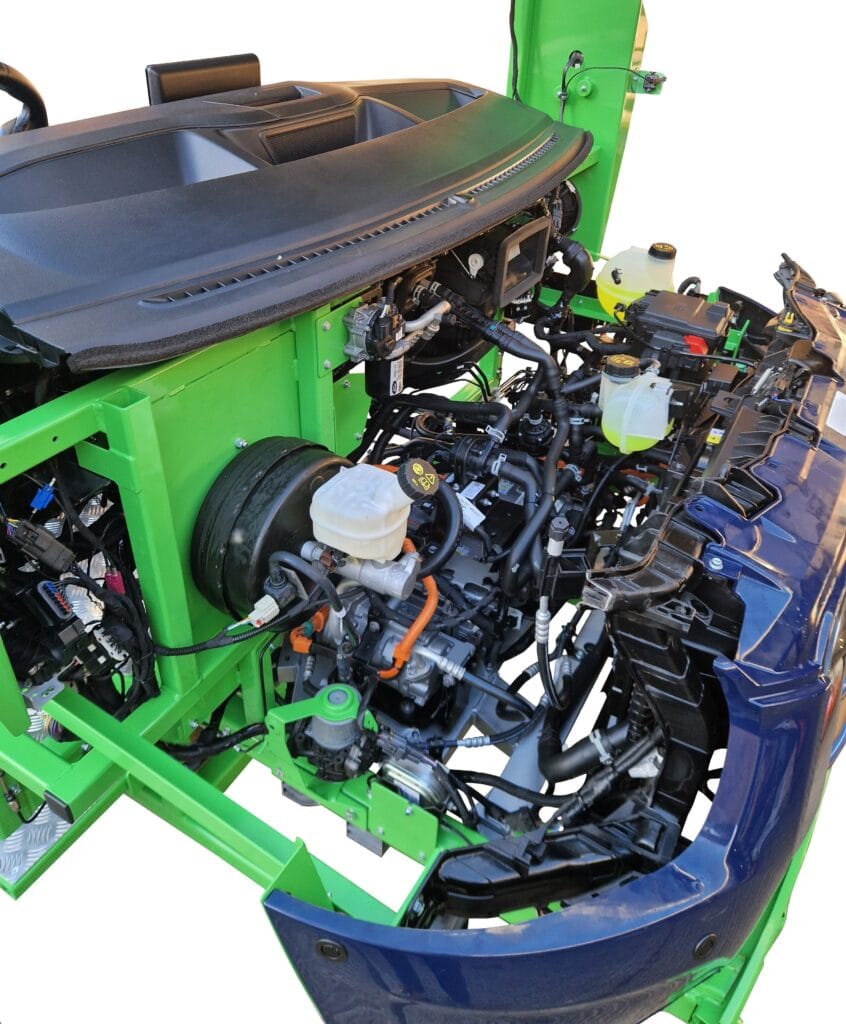

2. EV heater Motor and cooling system exposed to show all workings in a safe environment
3. Dashboard including all componentry, Bionicle, infotainment system, driver aids
4. Fault insertion – A Range of faults to be inserted upon a fault plate with switches (faults to be confirmed upon build)
5. Sectioned chassis – Allowing view of the drive train and workings surrounding the rear transmission/EV motor, also allowing access to the EV battery.
6. Guarding to be in place allowing coverage/shielding around moving parts
7. Weighted wheels to be fitted if required to elongate regeneration cycle
8. Unit mounted upon a casterised frame powered counted frame, mounting points to provide secure support for unit in working conditions. Our standard frame colour is ‘Block Red’, Our EV range is Green, Our Hybrid range is Yellow, our hydrogen range is Blue. We can facilitate corporate colours to suit.
9. Speed restriction to be fitted avoiding excessive driving speeds.
Manufactured using original components, Training manual to suit covering wiring diagrams, dismantling procedures, fault procedures, method statements, safety features.
Product Specifications
Dimensions
Weight
Specification
- Manufacturers charging point with charger with available fault insertion, High and Low current charging capabilities.
- 68 Kw 400v EV Battery
- Emergency cut off switch.
- Sectioned chassis – Allowing view and access to the drive train and workings surrounding the rear transmission/EV motor, also allowing access to the EV battery.
- Ability to Remove and Refit HV OEM battery
- Guarding to be in place allowing coverage/shielding around moving parts
- Weighted wheels to be fitted if required to elongate regeneration cycle
- Manufactures service plug to be accessible and operational.
- Unit mounted upon a casterised frame powered counted frame, mounting points to provide secure support for unit in working conditions.
- EV heater Motor and Cooling system exposed to show all workings in a safe environment with High Voltage AC pump.
- Access to safety service plug
- Dashboard includes all manufactured componentry, Bionicle, infotainment system, Driver aids with working ADAS.
- Fault insertion - A Range of faults to be inserted upon a fault plate with switches (faults to be confirmed upon build)
- Must be complete with drive shaft, end hubs and wheels.
- Live battery construction must be accessible via a guarded case
- Manufacturers and above safety features
- Manufactures OBD diagnostic plug to be accessible and operational with the ability to access live data.
- Speed restriction to be fitted avoiding excessive driving speeds.
- Supplied with a comprehensive training manual.
- Warranty 60 months from date of delivery.
- Training to be provided for usage of the E-transit rig.
