Air Brake Trainer

ABTT-001

Fully operational 2-line Air Brake Tractor/Trailer Trainer manufactured from new components.

This product is UK Conformity Assessed

Product Specifications

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

W x L x H: Tractor: 700mm x 2600mm x 2000mm - Trailer: 700mm x 1350mm x 2000mm

Tractor: 230 Kg - Trailer: 130Kg

Tractor Unit:

Compressor (not driven: outside air supply required).

Air Dryer. Air Tanks: Front, Rear and Secondary.

Multi-Circuit protection valve. Foot Pedal: dual foot valve.

Spring brake actuators. Load sensor valve. Park brake control valve.

Trailer control valve, supply dump valve, pre-dominance valve.

Double check valve. Brake light & warning buzzer. Suzie connectors.

Relay valve. Quick release valves. One way valve.

Circuit pressure gauges. Circuit pressure tap-in points.

Trailer Unit:

Suzie connector plugs. Combined park/shunt valve.

Relay emergency valve. Trailer air tank. Load sensor valve.

Spring brake actuators. Quick release valves.

Double check valve. Circuit pressure gauges.

Colour coded piping highlighting the different pressure circuits.

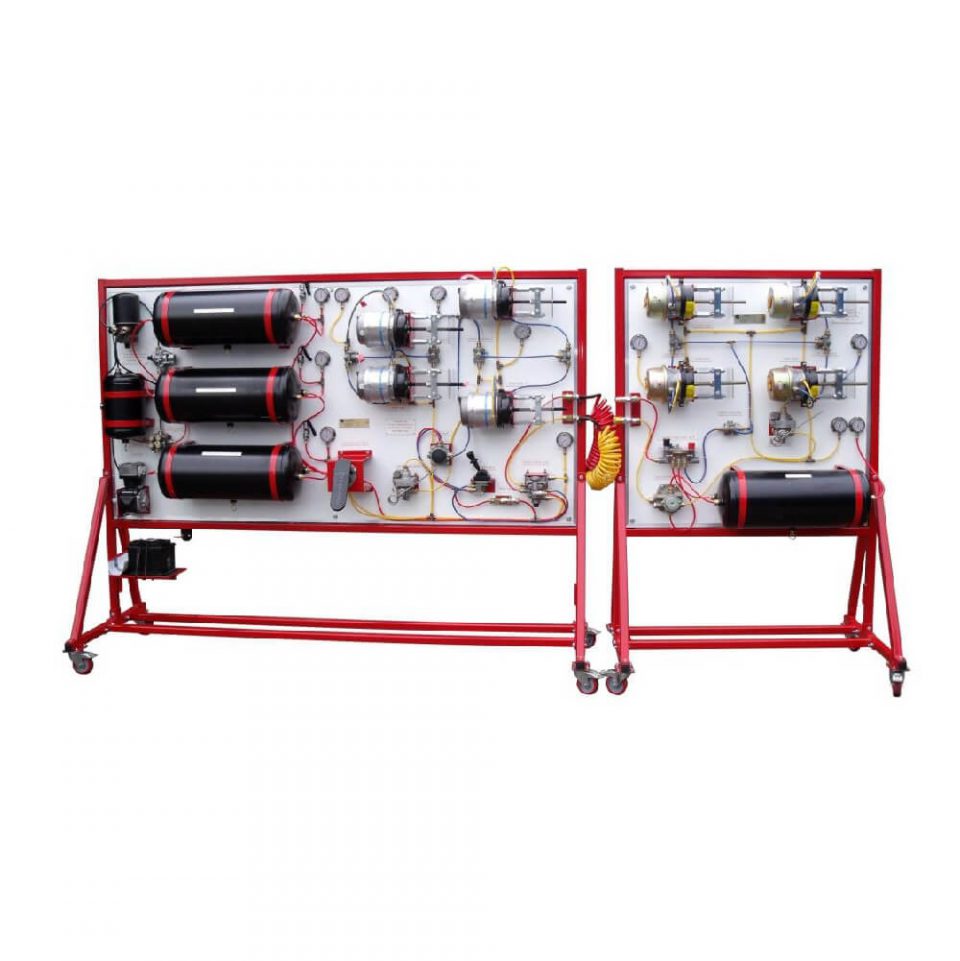

Air Brake Tractor/Trailer Trainer mounted on a trolley stand with castors. Powder coated paint finish.

Spring actuators at full travel (200mm) & Ø8mm pipes slows down operation to be observed.

Quick fit connectors over whole board.

Supplied with a comprehensive training manual.

Warranty 24 months from date of delivery.

Block Automotive design, engineer, fabricate and produce all their vocational training units at their bespoke facility here in Suffolk. We are extraordinarily proud to be part of the ‘MADE IN BRITAIN’ initiative, this brings together the British manufacturing community, united by the use of the registered collective mark.

The Block 2 Year Warranty

All equipment provided by Block Automotive is provided with the benefit of a 2 year warranty. The warranty will cover all aspects of mechanical failure.
